FRD Furukawa FHB/FXJ Hydraulic Breakers

The Furukawa FHB/FXJ Series offers maximum output with minimum Maintenance.

Noise reductions and reduced vibration make the FHB & FXJ breakers operator friendly and benefit the public and surrounding environment.

Modern in design and increased power in a carefully thought through physical structure.

The FRD hydraulic rock and concrete breakers offer speed, high productivity, low cost maintenance and a long service life.



Why choose Thomas Attachments Limited?

Read Our Customer Reviews

Trade Body Thomas Attachments Limited are a long standing industry service providers within the CPA (Construction Plant-Hire Association).

Expert advice Our sales team have many years’ experience supplying the right attachment to suit your machine and application.

Trusted after sales Spare parts always in stock for same day collection or next day delivery.

Unbeatable back-up support from our team of factory trained engineers.

Attachment rental Competitive rates on a wide range of hydraulic breaker attachments for short or long-term hire.

Attachment Sales Our prices include mounting bracket, hydraulic hoses, UK mainland delivery & installation and manufacturer’s warranty as standard.

Call now 01925 26990

FRD Furukawa FHB/FXJ hydraulic breakers

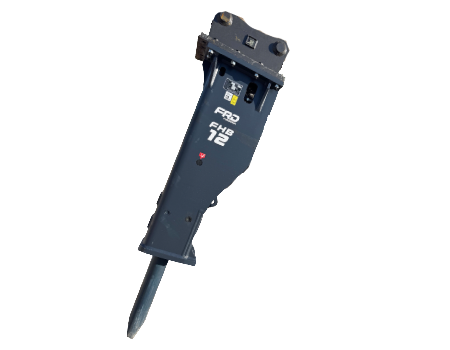

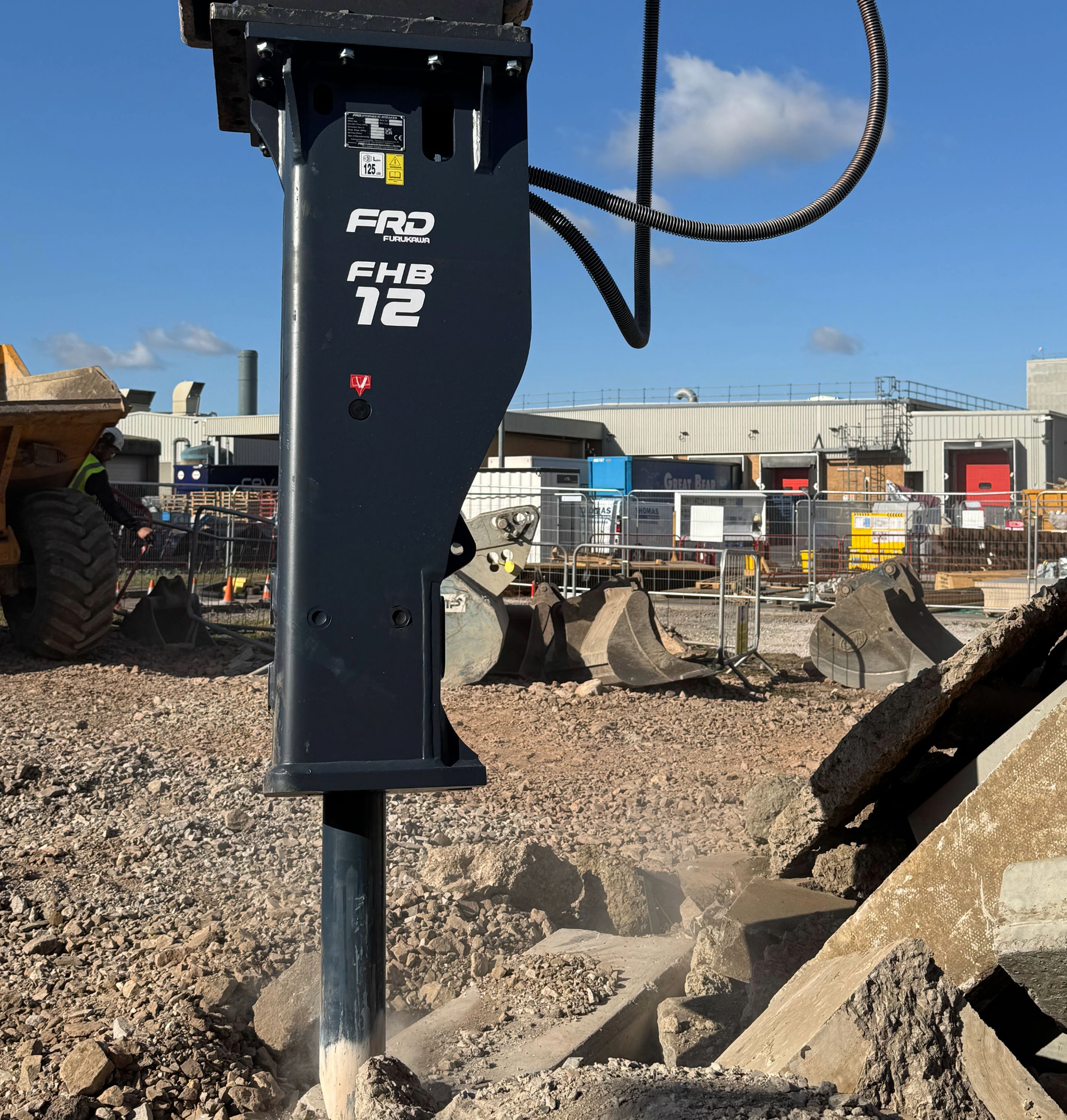

FHB SERIES - Total Impact Control On Demand



FHB hydraulic breakers are built with an SV housing which is a damping system that provides effective noise and vibration reduction for greater operator comfort and significantly lower environment impact. With each damper individually adjustable.

The unique monoblock structure from FRD eliminates the need for through bolts (Tie Rods) meaning no maintenance of these is required. Through 3D flow analysis, the internal flow within the hydraulic breaker is optimized, significantly reducing flow resistance. This leads to faster working cycles, lower strain on the carrier machine, improved fuel efficiency & reduced CO2 emissions.



From the FHB16 onwards they are fitted with a QSV (Quick Switch Valve). This will switch the impact in one second, with a 90degree turn of the tool you can turn change the mode/impact of the breaker from Light (S) to Strong (L) to Auto Stop (A). When the rock is fractured the percussion stops automatically.



7 models suitable for 9 - 55 tonne excavators, which can be used for heavy duty demolition, excavation & quarrying.

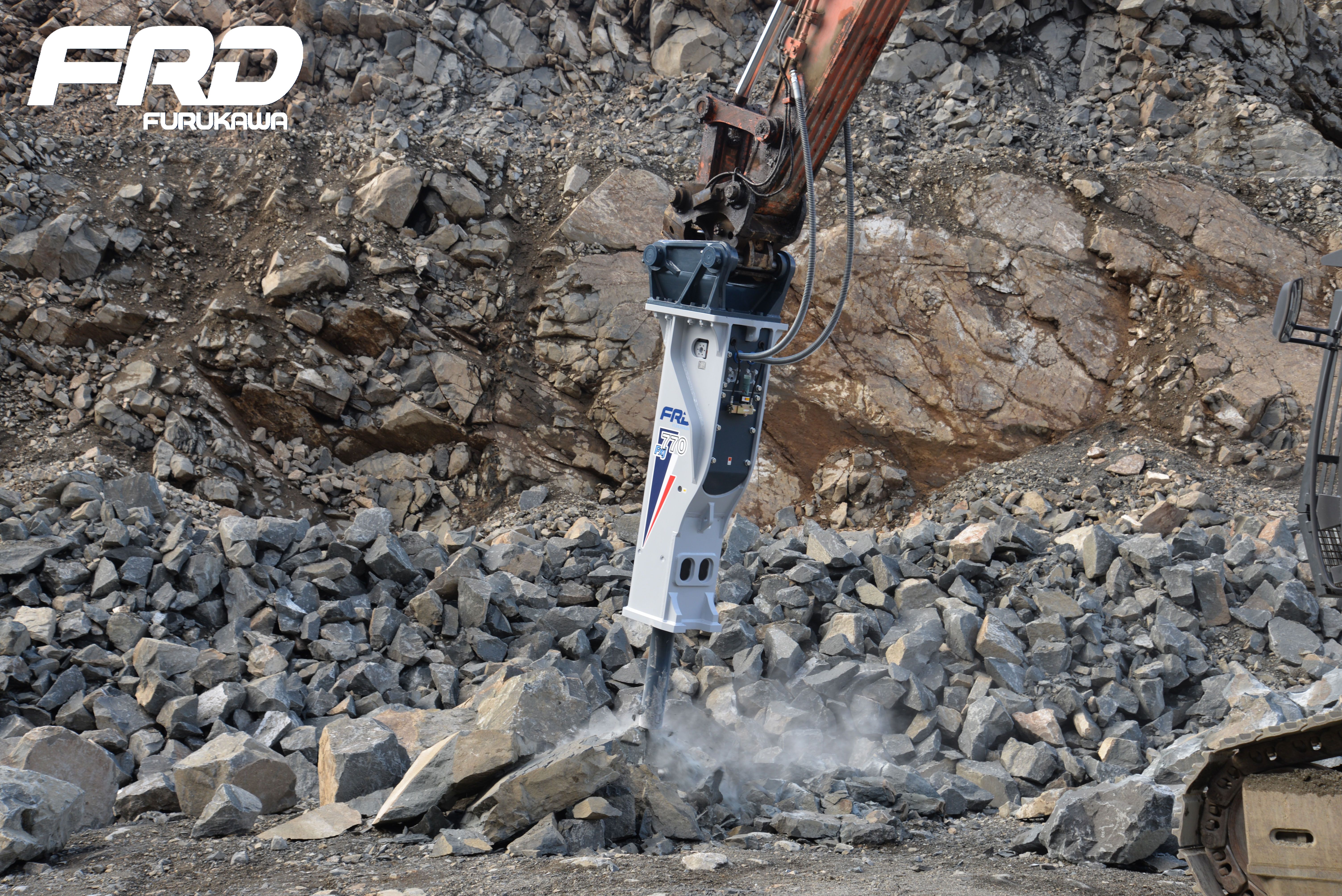

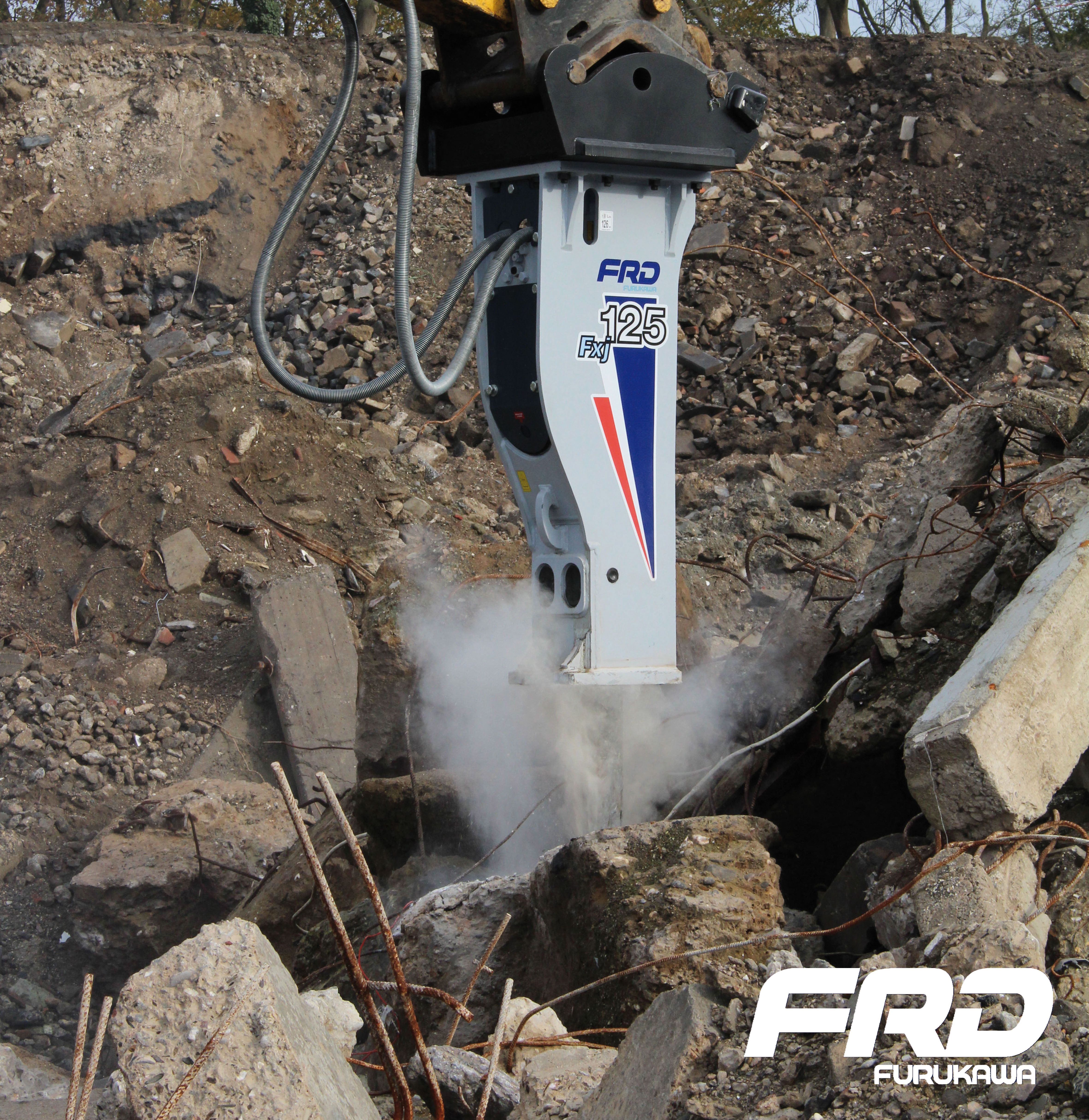

FXJ SERIES

FXJ hydraulic breakers offer a reliable, low cost maintenance and a long service life.

Ideal for heavy work in quarries and demolition sites where the most powerful breaking out force is required.

2 models suitable for 44-100 tonne excavators, which can be used for heavy duty demolition, excavation & quarrying.

Benefits

  • High power & performance (adjustable blows/blow energy)
  • Auto grease system available
  • Quick switch valve (QSV) available for FHB16 onwards
  • Patented mono block cylinder
  • No through bolts
  • FHB & FXJ frame designed to reduce noise & vibration
  • Slim body design
  • Redesigned piston
  • Dust control system
  • Minimal moving parts
  • Compressed air connection for anti-dust or underwater work

Applications

  • Quarrying
  • Mining
  • Demolition
  • Construction
  • Metallurical Industry
  • Sale
  • Hire
  • Spares
  • Service

Testimonial

It’s not very often the Furukawa breakers need attention or spare-part replacement, they cause us very few problems and offer maximum reliability.

It also reassuring to know ECY Haulmark have us backed up with their excellent service and spare parts response.

John McManus ,
Malcolm Construction

Testimonial

We always choose Furukawa as it is simply the best small breaker available on the market both in terms of performance and value for money. Plus we can always rely on ECY Haulmark to offer the best possible after sales, response time and back up service.

Peter Durey ,
H.E. Services Plant Hire
  • FRD Furukawa FXJ Hydraulic Breaker Spec Sheet
  • FXJ Hydraulic Breaker Video
  • Gallery
DOWNLOAD All PDF

Contact us for more information on the FRD Furukawa FHB & FXJ hydraulic breakers

Send us your details and our sales team will advise you on the most suitable breaker for your machine.



Hydraulic Breaker Spares and Service

Thomas Attachments Limited are proud to have been a UK distributor for Furukawa rock breakers since 2011.

We stock genuine spare parts for the full range of Furukawa breakers and can service your hydraulic rock breaker on request.
